FrontRow™ MASQUERADE Technical Specifications

FrontRow™ Masquerade Modules

(There are two width options for the ‘end of row’ seats)

Module Width Depth Seat Depth Back Height Seat Height Weight
1EL1U/ 1ER1U 87-119cm 97-156cm 56cm 97-105cm 46cm 61kg
1.25EL1U/ 1.25ER1U 101-133cm 97-156cm 56cm 97-105cm 46cm 71kg
1.25NA1V 75cm 97-156cm 56cm 97-105cm 46cm 52kg
30C 99cm 97cm 97cm 46cm 29kg
MUL11 32cm 97cm 97cm 19kg

Multiple Rows and Plinth Heights

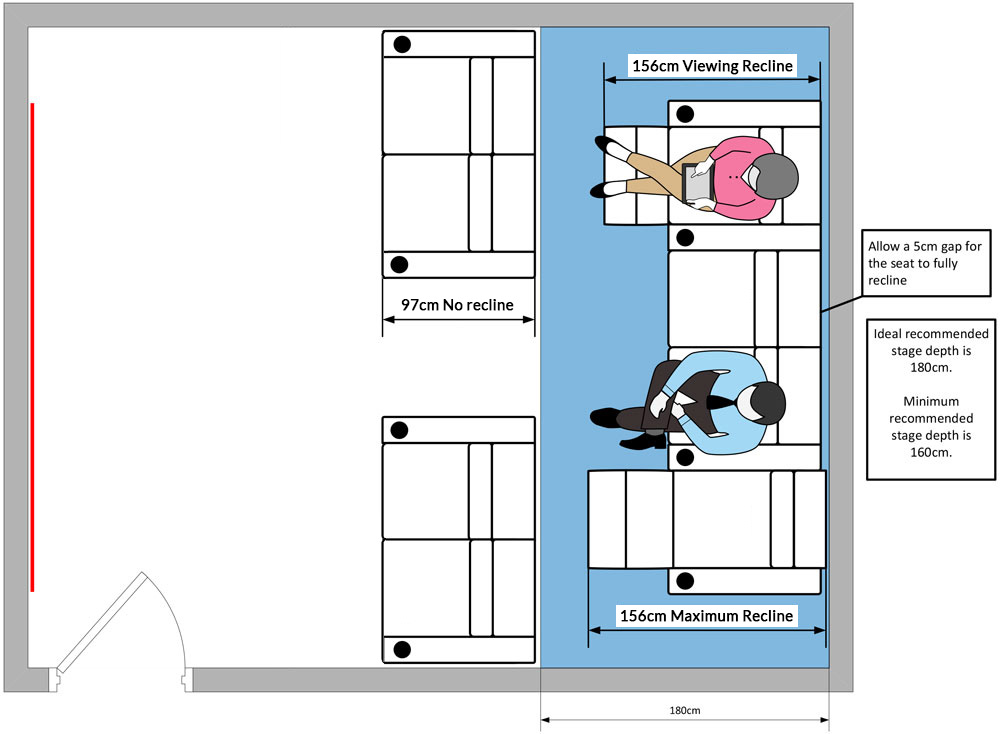

Where multiple rows are used it is recommended to have a raised plinth. The plinth height will depend on the length of the room, height of screen etc. to determine the viewing angles. We can create scale drawing to help with the design of your room and to ensure those in rear rows do not have restricted sight lines. The recommended distance from the back of the back row to the back of the front row is 1.8m however 1.6m can be used for normal viewing positions if space is not available. As the seats incline i.e. scoop forward as they recline rear seats can be positioned close to walls or partitions.

Line drawings
